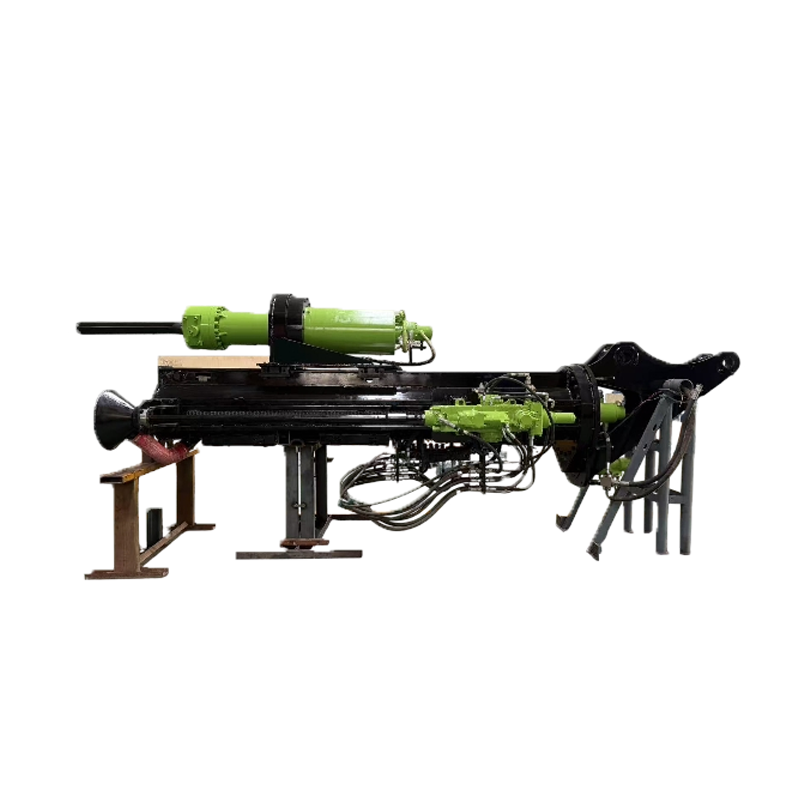

Drlling and Cracking Machine

The drilling and cracking machine is a specialized equipment used for splitting hard rocks with patent. The drilling and cracking machine is perfectly combined with the excavator, and the splitting effect of hard rocks is very well. The whole machine is flexible in movement and can operate from multiple angles of the working face,which is suitable for mining, municipal engineering, national defense traffic network and various static mining fields.

The drilling and cracking machine adopts remote control and remote operation, which reduces the labor intensity of workers, lowers mining costs, and improves production efficiency.

Operations：

Operation of excavator → Positioning of elastic shaft of drilling and cracking machine → Drilling by rock drill → Lifting and resetting of rock drill → Frame angle of 90 ° (aligning the machine with the drilling position) → Splitting machine swing angle (determining the splitting direction) → Splitting machine entering the hole → Splitting → Lifting and resetting of the splitting machine

Characteristic：

Feature 1: Rapid modification

The excavator and drilling and cracking machine are connected by pin shafts, and the overall pre-installation of the air compressor can be quickly completed.

Feature 2: Direct and precise positioning of the angle cylinder

The drilling and cracking machine can operate at multiple angles such as vertical and inclined. Unique oil cylinder rotation with the 90 ° direct positioning function eliminates the need for back and forth adjustments, resulting in higher efficiency.

Feature 3: Remote control operation, convenient and efficient

The use of load sensitive proportional valve control enables remote control of drilling, hole alignment, splitting, and other operations. Compared to traditional cracking machines, it saves labor costs, reduces labor intensity for workers, and improves splitting efficiency.

Feature 4: Energy Saving and Environmental Protection

Only  20T excavator is needed for modification, without the need to adjust the counterweight or change other structures of the excavator, making the whole machine lighter and more energy-efficient. Equipped with a 3-cube screw air compressor, it has high air pressure and efficiency. Paired with cyclone separator and dust bag filter, it is more environmentally friendly and can achieve dust-free operation.

Feature 5: Super Strong Fractured Rock

Drilling and cracking machine with ultra large oil cylinder, ultra-high pressure, and optimal propulsion angle, developed for hard rock.

Parameter

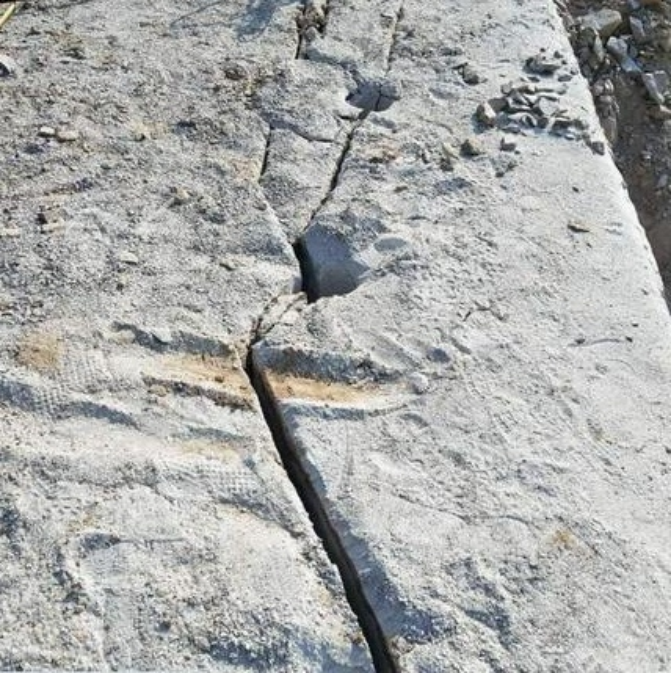

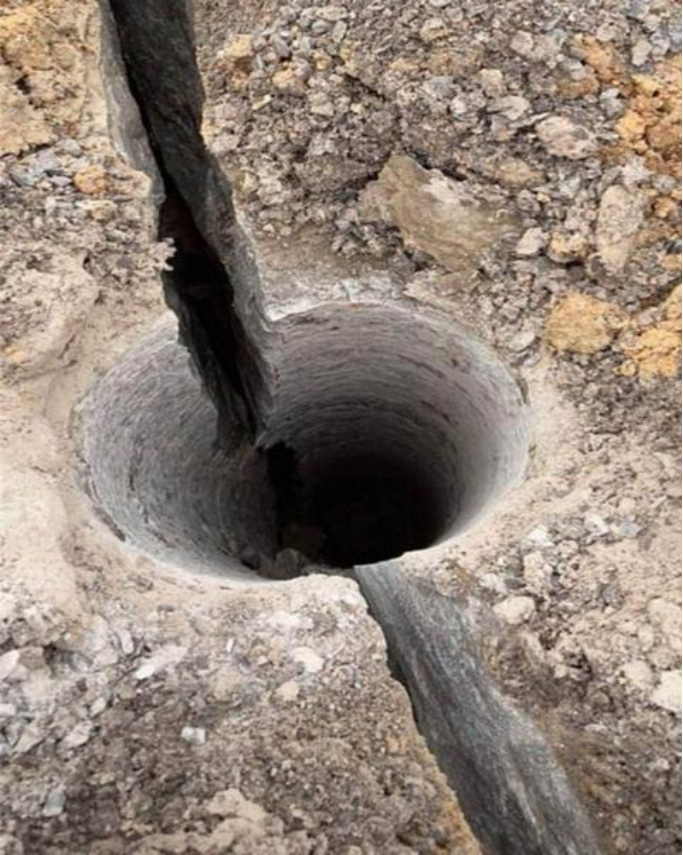

Operational photos
