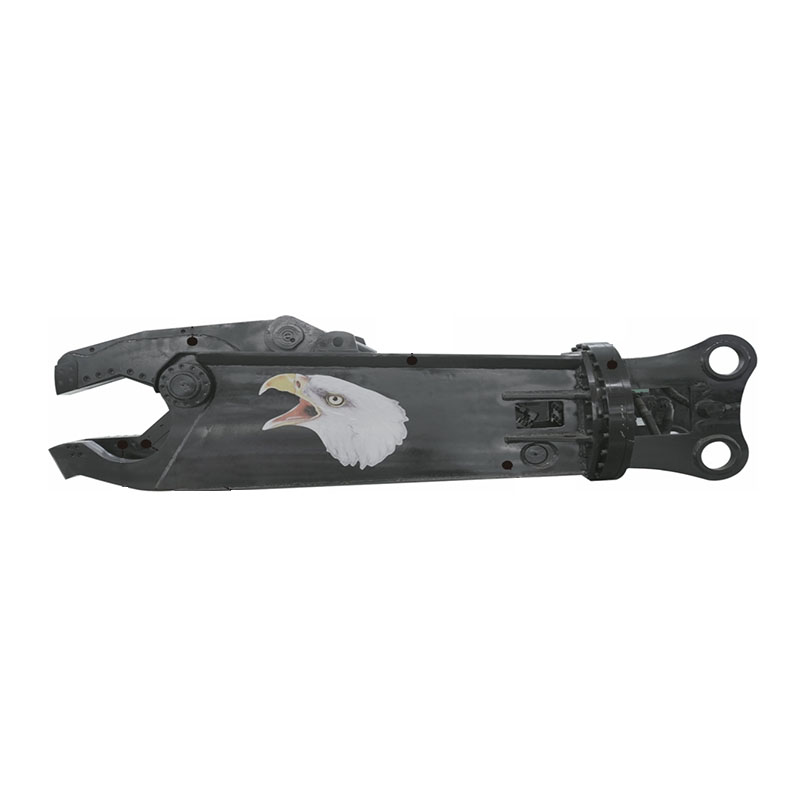

Eagle-Beak Shear
High-Torque Motor & Dedicated Rotary Support TDNM400 Shear Body Imported Blades Heavy-Duty Demolition suitability
High-Torque Motor & Dedicated Rotary Support TDNM400 Shear Body Imported Blades Heavy-Duty Demolition suitability
The Eagle-Beak Shear is a robust and efficient cutting solution designed for challenging industrial operations. Perfect for processing H-beams, I-steels, automotive beams, and structural supports, it combines powerful performance with exceptional durability to meet the demands of modern metalworking and demolition projects.
| Item/model | Unit | WOY-04 | WOY-08-1 | WOY-08-2 | WOY-10 |
| Compatible excavators | ton | 8-15 | 19-28 | 18-24 | 26-36 |
| Weight | kg | 920 | 540 | 1030 | 300 |
| Overall dimension [length] | mm | 1100 | 2300 | 1850 | 3300 |
| Overall dimension [width] | mm | 2250 | 3250 | 3100 | 4400 |
| Overall dimension [height] | mm | 700 | 930 | 920 | 1350 |
| Opening | mm | 300 | 450 | 450 | 650 |
| Blade length | mm | 380 | 480 | 480 | 680 |
| Compatible pressure | mpa | 14-28 | 28-36 | 24-33 | 28-40 |
| Control mode | Fully Electronically Controlled | Electro-Hydraulic Control | Electro-Hydraulic Control | Electro-Hydraulic Control |
Applications：Cutting H-beams and I-steels,Processing automotive beams and factory structural supports,Dismantling heavy-duty vehicles
Industrial demolition and metal recycling
Key Features
1.High-Torque Motor & Dedicated Rotary Support
Equipped with a specialized motor and rotary support system, the Eagle-Beak Shear delivers flexible operation, remarkable stability, and consistent high-torque performance.
2.TDNM400 Shear Body
Constructed with TDNM400 plate, the shear body offers superior toughness, strength, and wear resistance – ensuring reliable operation in extreme conditions.
3.Imported Blades
The blades are made from premium imported materials, significantly 4.Heavy-Duty Demolition suitability
Engineered for dismantling heavy vehicles and processing structural components, this tool offers unmatched versatility and endurance.
The Eagle-Beak Shear sets a new standard for performance and reliability in metal cutting and demolition. Its innovative design and superior materials make it the top choice for industrial professionals.
