@Adopting dedicated rotary support and motor, flexible operation, stable performance, and high torque; ②The shear body adopts TDNM400 plate, which has high toughness, high strength and wear resistance. ③The blade is made of imported materials, with a longer service life. ④Suitable for dismantling heavy-duty vehicles, flexible and durable.

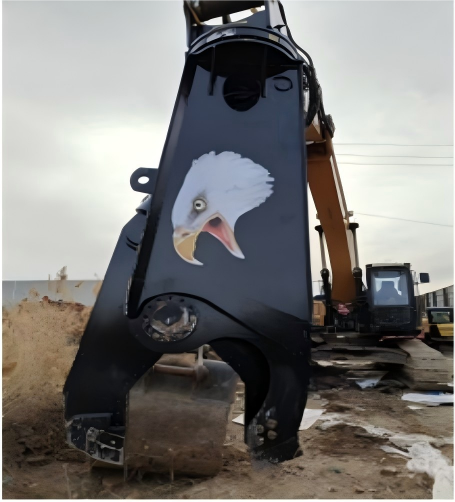

In the demanding worlds of demolition, scrap metal recycling, and steel fabrication, efficiency is everything.Our Eagle Beak Shear is specifically designed to cleanly and efficiently process a wide range of dense and complex structural steel profiles.
Applicable Fields:
Used for cutting operations of H, l steel, automotive beams, factory support beams, etc.
core Features:
@Adopting dedicated rotary support and motor, flexible operation, stable performance, and high torque;
②The shear body adopts TDNM400 plate, which has high toughness, high strength and wear resistance.
③The blade is made of imported materials, with a longer service life.
④Suitable for dismantling heavy-duty vehicles, flexible and durable.
| Item/model | Unit | WOY-04 | WOY-08-1 | WOY-08-2 | WOY-10 |
| Compatible excavators | ton | 8-15 | 19-28 | 18-24 | 26-36 |
| Weight | kg | 920 | 540 | 1030 | 300 |
| Overall dimension [length] | mm | 1100 | 2300 | 1850 | 3300 |
| Overall dimension [width] | mm | 2250 | 3250 | 3100 | 4400 |
| Overall dimension [height] | mm | 700 | 930 | 920 | 1350 |
| Opening | mm | 300 | 450 | 450 | 650 |
| Blade length | mm | 380 | 480 | 480 | 680 |
| Compatible pressure | mpa | 14-28 | 28-36 | 24-33 | 28-40 |
| Control mode | Fully Electronically Controlled | Electro-Hydraulic Control | Electro-Hydraulic Control | Electro-Hydraulic Control |
