①Adopt special slewing support and motor, flexible operation,stable performance and large torque. ②The shear body is made of TDNM400 plate, which has hightoughness. ③The blade is made of imported materials, which has a longerservice life. ④The structure is optimized and not easily deformed.

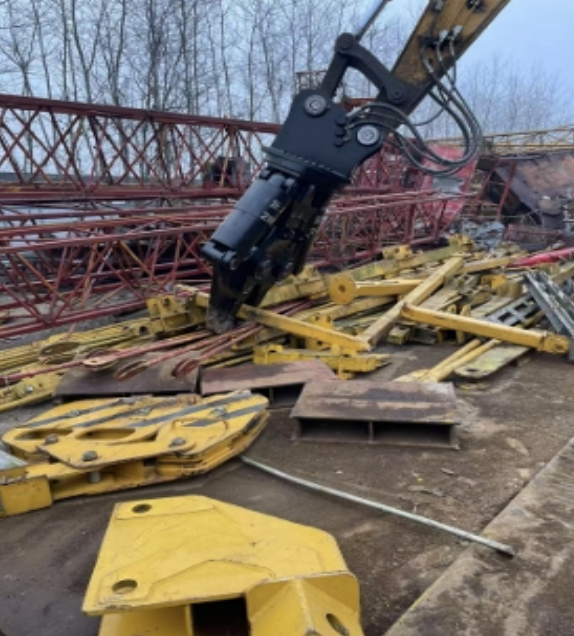

The double-cylinder shear delivers extremely powerful, stable, and balanced cutting force through two hydraulically operated cylinders working in parallel. It is designed for cutting or demolishing hard, bulky objects, making it the optimal equipment for scrap steel processing and a reliable tool for rescue and demolition operations.
pplicable Fields:Demolition of buildings, cutting of steel, etc.
Core Features:
①Adopt special slewing support and motor, flexible operation,stable performance and large torque.
②The shear body is made of TDNM400 plate, which has hightoughness.
③The blade is made of imported materials, which has a longerservice life.
④The structure is optimized and not easily deformed.
| Item/model | Unit | WOY-04 | WOY-06 |
| Compatible excavators | ton | 20-30 | 28-50 |
| Weight | kg | 3000 | 3450 |
| Overall dimension [length] | mm | 2350 | 2780 |
| Overall dimension [width] | mm | 1450 | 1780 |
| Overall dimension [height] | mm | 820 | 830 |
| Opening | mm | 660 | 800 |
| Blade length | mm | 300+260 | 400+260 |
| Compatible pressure | mpa | 28-33 | 24-40 |
